TH-HR, as a high-resolution, low-shrinkage, and high-precision tough material, is suitable for printing ultra-fine GK, head sculpts, mecha models, miniatures, car models, master mold for liquid silicone molding, and precision prototypes that require strength.
▌ Key Features
Combines Rigidity And Toughness
High Precision
High Resolution
Low Shrinkage And Deformation
Matte Finish
Fine And Smooth Surface
Stable Composition
Excellent Printability
Easy To Clean
▌ Descriptions

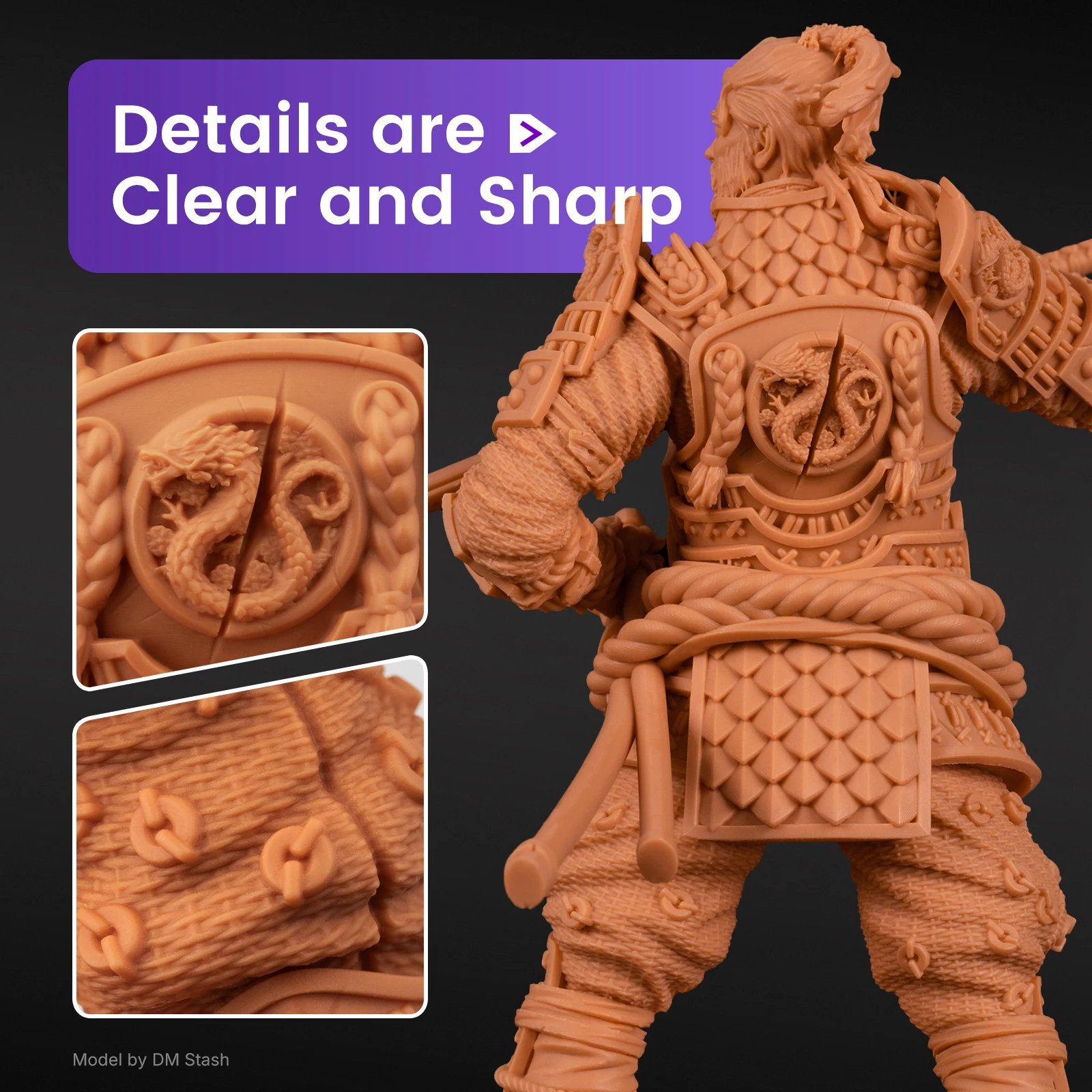

Ultra-high precision and resolution

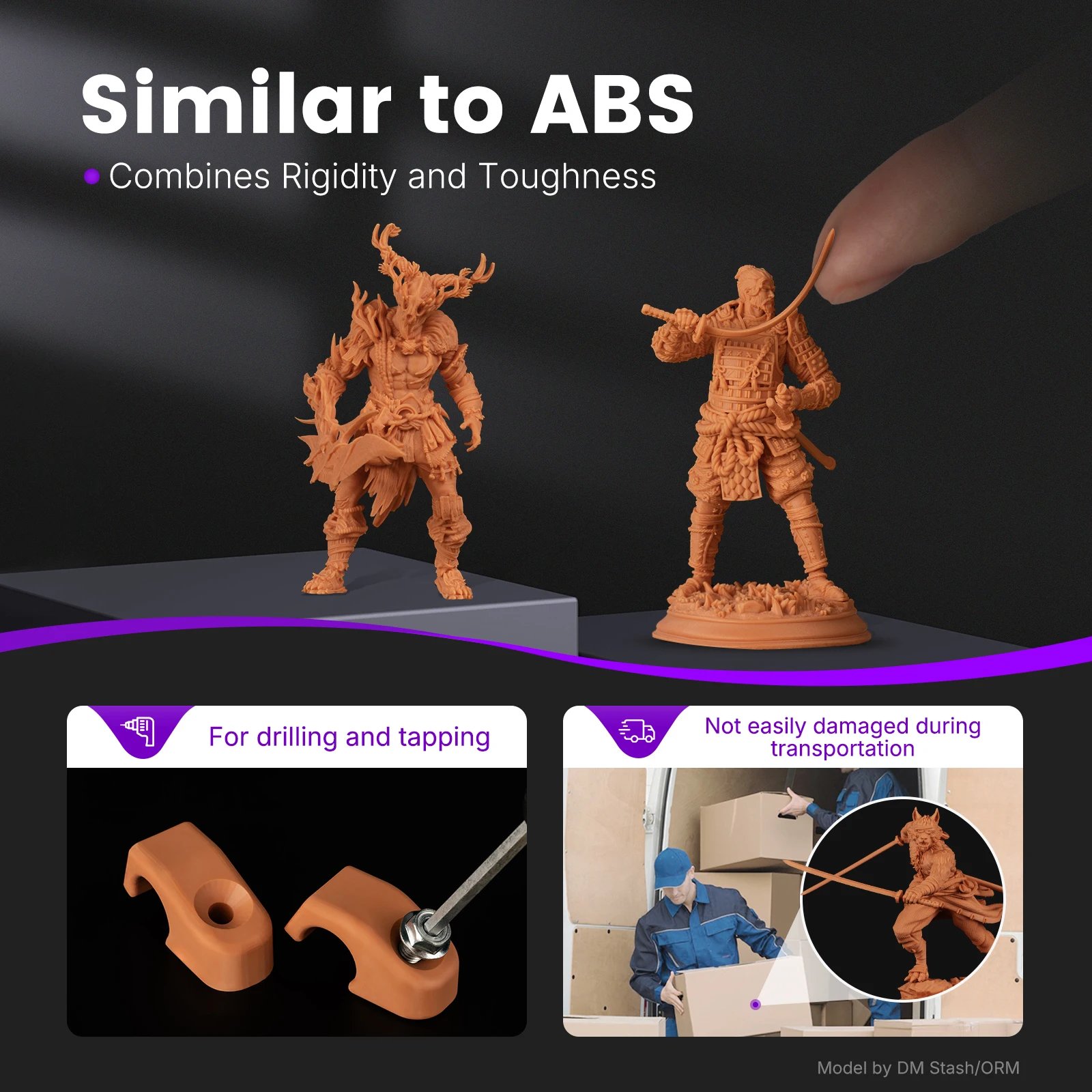

Rigid and tough, Resistant to damage

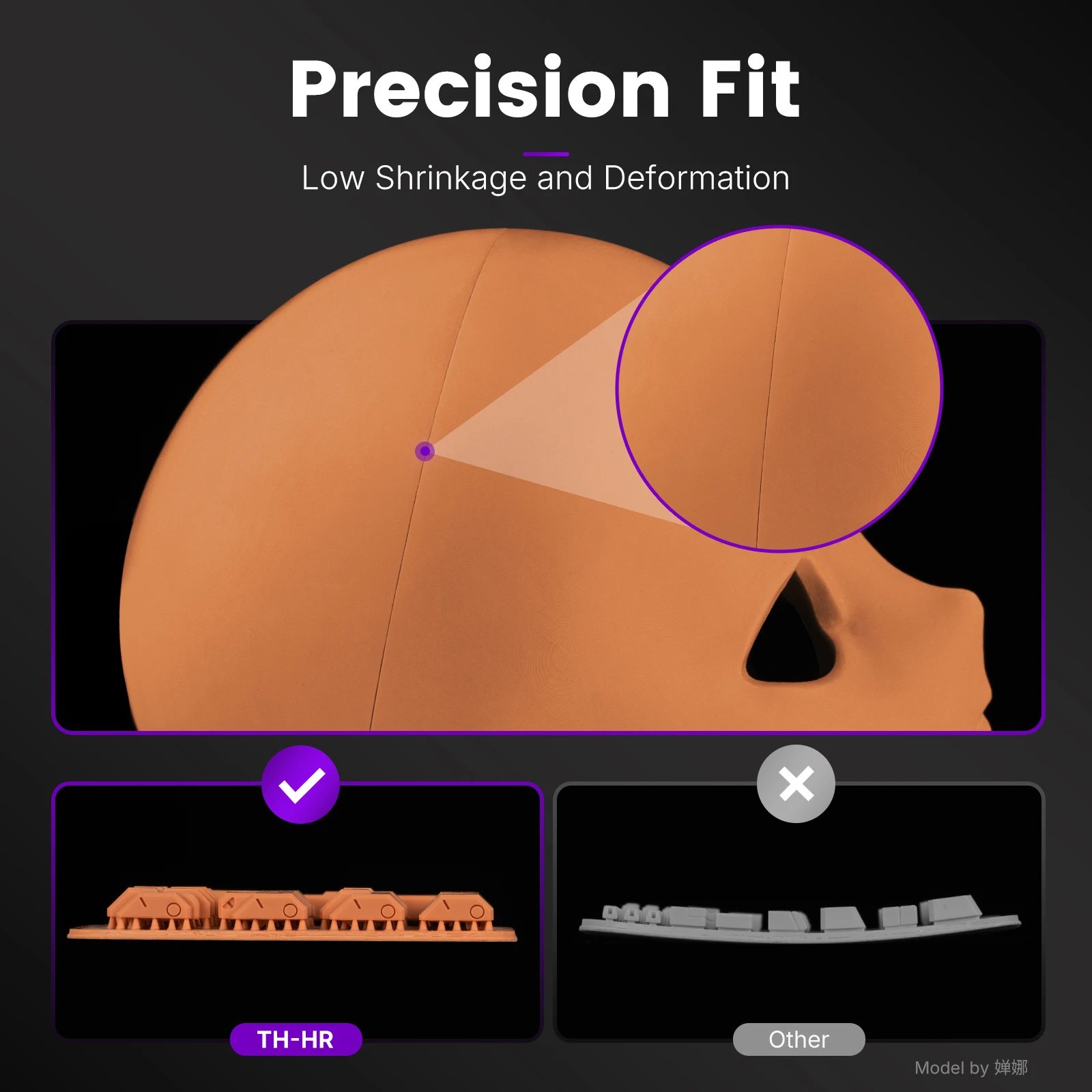

Low shrinkage, Low deformation

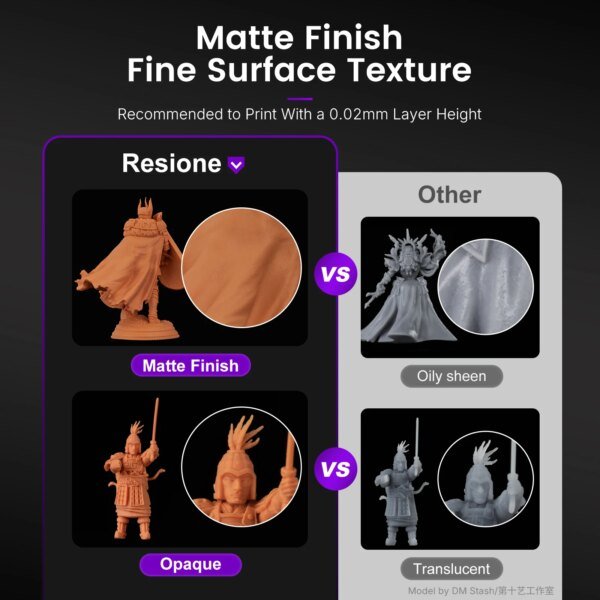

Matt texture, Smooth surface
The printed parts feature a premium matte texture with non-translucent thin structures, making it easier to observe model details and imperfections. RESIONE recommends printing with a 0.02mm layer height, which ensures a fine and smooth surface, helping to reduce post-processing time.
Premium user experience

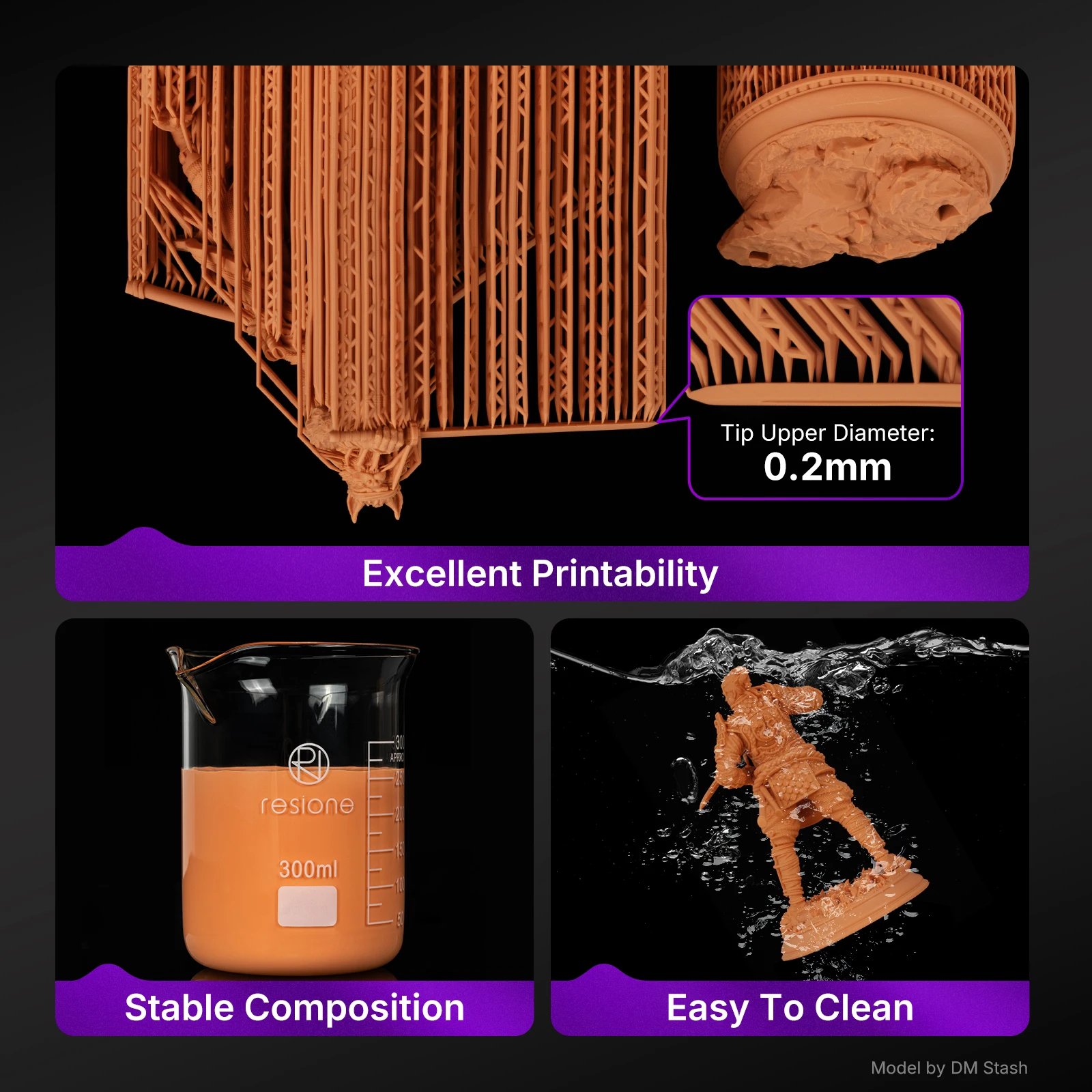

The resin features stable composition, low sedimentation, and excellent moldability, significantly reducing printing failure rates. TH-HR resin supports the use of fine supports, which are easy to remove and leave minimal marks, simplifying post-processing. Printed parts can be easily and thoroughly cleaned, leaving the model’s surface non-sticky after washing.
▌ Print Settings – 50um
TH-HR (Red clay) 50um
Operating Temp: 25~35℃/77~95℉
Layer Height: 0.05mm
Exposure Time: 3.2~4.8s
Bottom Exposure Time: 80~120s
Lifting Height:
LCD Screen size less than 8.9 inches: 6mm
LCD Screen size ≥8.9 inches: ≥10mm
Rest Time After Retract/Off times /Light-off Delay: ≥3s;
TH-HR (White clay) 50um
Operating Temp: 25~35℃/77~95℉
Layer Height: 0.05mm
Exposure Time: 2.8~4.2s
Bottom Exposure Time: 80~120s
Lifting Height:
LCD Screen size less than 8.9 inches: 6mm
LCD Screen size ≥8.9 inches: ≥10mm
Rest Time After Retract/Off times /Light-off Delay: ≥3s;
▌ Print Settings – 30um
TH-HR (Red clay) 20um
Operating Temp: 25~35℃/77~95℉
Layer Height: 0.02mm
Exposure Time: 1.8~2.7s
Bottom Exposure Time: 80~120s
Lifting Height:
LCD Screen size less than 8.9 inches: 6mm
LCD Screen size ≥8.9 inches: ≥10mm
Rest Time After Retract/Off times /Light-off Delay: ≥3s;
TH-HR (White clay) 20um
Operating Temp: 25~35℃/77~95℉
Layer Height: 0.02mm
Exposure Time: 1.6~2.4s
Bottom Exposure Time: 80~120s
Lifting Height:
LCD Screen size less than 8.9 inches: 6mm
LCD Screen size ≥8.9 inches: ≥10mm
Rest Time After Retract/Off times /Light-off Delay: ≥3s;
▌ Cleaning and Post-curing
- Cleaning tools: Hand washing
- Cleaning time: ≤5mins
- Cleaning liquid: 95% Ethanol or IPA
- Post-curing method: For example, using the Anycubic Wash Plus curing and washing machine, cure the front and back of the printed object for 10 minutes each.
▌ Compatible 3D Printer
-
All series of Anycubic，Elegoo，Nova3d，Peopoly，Phrozen，Epax，Creality，Zortrax, BIQU, QIDI, UNIZ, Flashforge, Voxelab, Longer, Uniformation etc. UV 395-410nm LCD resin 3D printer
-
All series of Anycubic，Asiga, Elegoo, Solus series, Miicraft, Kudo3d, Flashforge，Makex，Shining etc. UV 385-410nm DLP resin 3D printer
