Description:
CR-Scan Raptor is a 3D scanner with metrology-grade accuracy, with a maximum accuracy of 0.02mm. Using a blue parallel 7-line laser and infrared structured light for scanning. It produces richer details, sharper edges, and restores the 3D shape of the object accurately.
Specifications
CR-Scan Raptor is a 3D scanner with metrology-grade accuracy, with a maximum accuracy of 0.02mm. Using a blue parallel 7-line laser and infrared structured light for scanning. It produces richer details, sharper edges, and restores the 3D shape of the object accurately.
Specifications
|
Scanning Mode:
|
BlueLight(Blue 7-line laser)
|
NIR(infrared binocular
structured light) |
|
Accuracy:
|
Up to 0.02mm@100mm
|
Up to 0.1mm
|
|
3D Resolution:
|
0.02-2mm
|
0.1-2mm
|
|
Scanning Speed:
|
Upto60fps
|
Upto20fps
|
|
Min.scan volume:
|
5mmx5mmx5mm
|
150mmx150mmx150mm
|
|
Single Capture
Range: |
270mmx170mm@300mm
|
930mmx580mm@1000mm
|
|
Working distance:
|
150mm-400mm
|
170mm-1000mm
|
|
Color Mapping:
|
Yes
|
Yes
|
|
Alignment mode:
|
Marker
|
Marker/geometry/texture
|
|
3D imaging
camera resolution: |
1920×1200
|
|
|
Color Supplemental Light:
|
12whiteLEDs
|
|
|
Marker Recognition
Enhancement: |
12 infrared LEDs
|
|
|
Laser Safety:
|
Class I(eye safe)
|
|
|
Button:
|
Mechanical
|
|
|
IMU:
|
Yes
|
|
|
Output format:
|
OBJ/STL/PLY
|
|
|
Input Power:
|
12V2A
|
|
|
Data interface:
|
Type C/USB 3.0
|
|
|
Device Dimensions:
|
215mmx50mmx74mm
|
|
|
Device Weight:
|
372g
|
|
|
Calibration board:
|
High-precision glass calibration board
|
|
|
System Support:
|
Windows 10/11(64bit) : macOS:11.77 and above, Apple M 1/M 2/M 3 series processors; |
|
|
Wireless Scanning:
|
Supported(in conjunction with future wireless scanning accessories)
|
|
|
Operating temperature:
|
-10°C to 40°C
|
|
|
Operating humidity:
|
0-90%RH”
|
|
Features:
7 Blue Parallel Laser Lines
Metrology Grade Accuracy, up to 0.02mm
Scanning Speed up to 60fps
Objects between 5-2000mm
Anti-shaking for Smooth Scanning
Scan Black/Metal Objects Without Sprays
24-Bit Full-Color Scanning
Light and Compact(215mmx50mmx74mm), only weight 372g
The First Multiple-line Blue Laser Consumer 3D Scanner
BLUE LASER & NIR
The CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios.
7 Laser Lines, Metrology Grade Accuracy
7 parallel blue laser lines for fine scanning details, single laser line is very thin, up to 0.1mm to obtain sharper and clear edges.
High-speed Scanning, Beyond Your Imagination
BlueLight Scanning Speedup to 60fps
NIR Scanning Speedup to 20fps
Infreared Structured, Lith Scanning
Makerless Scanning
The CR-Scan Raptor utilizes speckle matching 3D imaging, No markers needed for feature-rich workpieces. Objects can be scan quickly and directly.
Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan only needs as quick as 2 minutes.
Accurate and Detailed Scanning
Advance temperature compensation algorithm.
It can improve temperature stability and ensure accuracy.
High Performance Structure
φ20mm large depth of field lens
Low distortion lens<5‰
9-elements glass lens
Metal lens barrel and holder
The CR-Scan Raptor covers near and far distance scanning,and is equipped with good stability in high and low temperatures,providing reliable measurement scanning results.
Versatile Scanning for All Size
Combining line lasers with infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5mm³-2000*2000*2000mm³. Effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more.
Anti-shaking for Smooth Scanning
Equipped with One-shot 3D imaging technology, the CR-Scan Raptor is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Scan Black/Metal Objects without Sprays
Even without scanning spray, you can scan cars, car parts, tires and other black/metal objects to get the desired model effect.
24-bit Full-color Scanning
Equipped with 12 circular LED texture lights, it can enhance the brightness of color mapping in dark environments and truly present the color of objects.
Peaceful Scanning in Various Environments
Dual-color circular LED texture lights can help achieve more realistic scanning results.
BlueLight : Provides supplementary light for laserline scanning
White Light : Used to enhance the brightness of color textures.

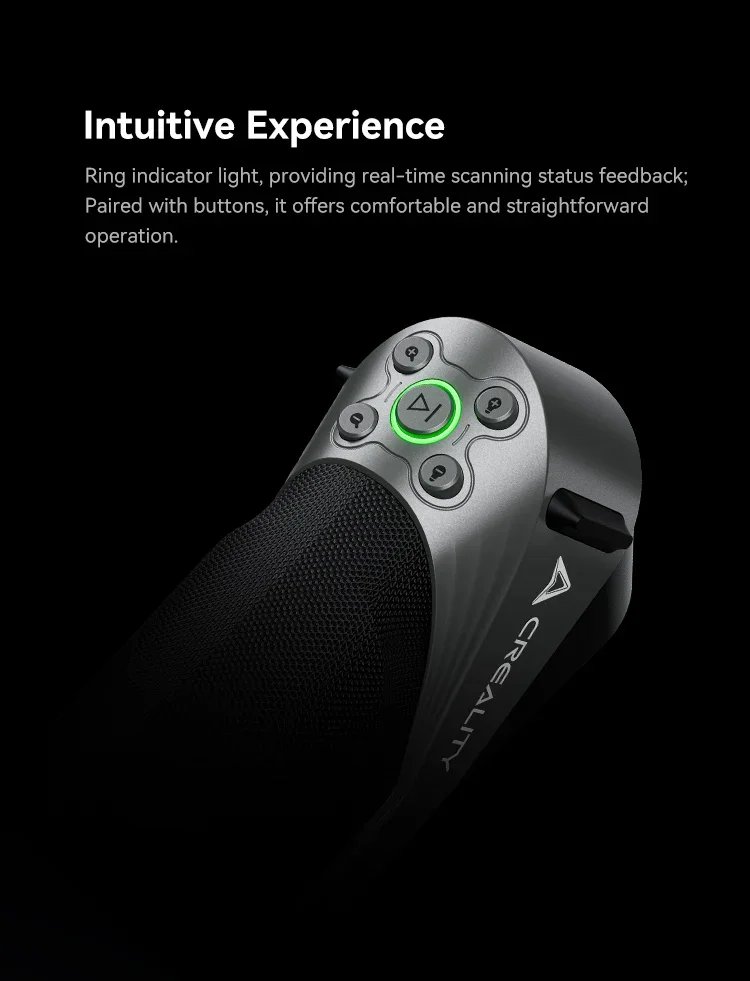

Intuitive Experience
Ring indicator light, providing real-time scanning status feedback;
Paired with buttons, it offers comfortable and straightforward operation.
Ligthweight and Portable, One-hand Control

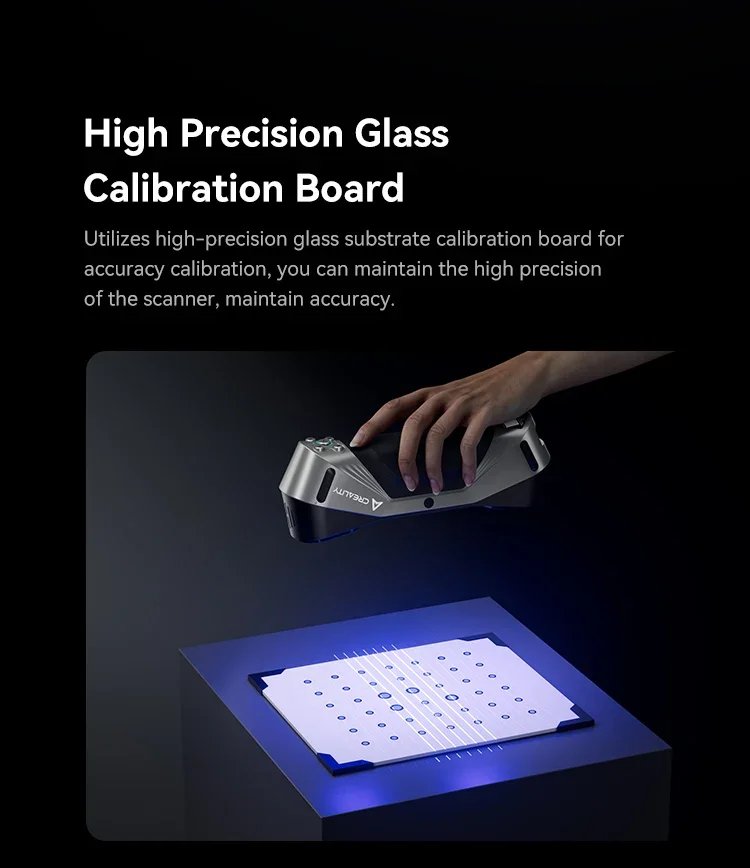

High Precision Glass Calibration Board
Utiizes high-precision glass substrate calibration board for accuracy calibration, you can maintain the high precision of the scanner, maintain accuracy.
7 Blue Parallel Laser Lines
Metrology Grade Accuracy, up to 0.02mm
Scanning Speed up to 60fps
Objects between 5-2000mm
Anti-shaking for Smooth Scanning
Scan Black/Metal Objects Without Sprays
24-Bit Full-Color Scanning
Light and Compact(215mmx50mmx74mm), only weight 372g
The First Multiple-line Blue Laser Consumer 3D Scanner
BLUE LASER & NIR
The CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios.
7 Laser Lines, Metrology Grade Accuracy
7 parallel blue laser lines for fine scanning details, single laser line is very thin, up to 0.1mm to obtain sharper and clear edges.
High-speed Scanning, Beyond Your Imagination
BlueLight Scanning Speedup to 60fps
NIR Scanning Speedup to 20fps
Infreared Structured, Lith Scanning
Makerless Scanning
The CR-Scan Raptor utilizes speckle matching 3D imaging, No markers needed for feature-rich workpieces. Objects can be scan quickly and directly.
Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan only needs as quick as 2 minutes.
Accurate and Detailed Scanning
Advance temperature compensation algorithm.
It can improve temperature stability and ensure accuracy.
High Performance Structure
φ20mm large depth of field lens
Low distortion lens<5‰
9-elements glass lens
Metal lens barrel and holder
The CR-Scan Raptor covers near and far distance scanning,and is equipped with good stability in high and low temperatures,providing reliable measurement scanning results.
Versatile Scanning for All Size
Combining line lasers with infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5mm³-2000*2000*2000mm³. Effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more.
Anti-shaking for Smooth Scanning
Equipped with One-shot 3D imaging technology, the CR-Scan Raptor is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Scan Black/Metal Objects without Sprays
Even without scanning spray, you can scan cars, car parts, tires and other black/metal objects to get the desired model effect.
24-bit Full-color Scanning
Equipped with 12 circular LED texture lights, it can enhance the brightness of color mapping in dark environments and truly present the color of objects.
Peaceful Scanning in Various Environments
Dual-color circular LED texture lights can help achieve more realistic scanning results.
BlueLight : Provides supplementary light for laserline scanning
White Light : Used to enhance the brightness of color textures.
Intuitive Experience
Ring indicator light, providing real-time scanning status feedback;
Paired with buttons, it offers comfortable and straightforward operation.
Ligthweight and Portable, One-hand Control
High Precision Glass Calibration Board
Utiizes high-precision glass substrate calibration board for accuracy calibration, you can maintain the high precision of the scanner, maintain accuracy.
