NOTES
There are two options for this screen,one is Pad 7 with CB1;the other is Pad 7 (without CB1)Users can purchase CB1 or CM4 for installation.

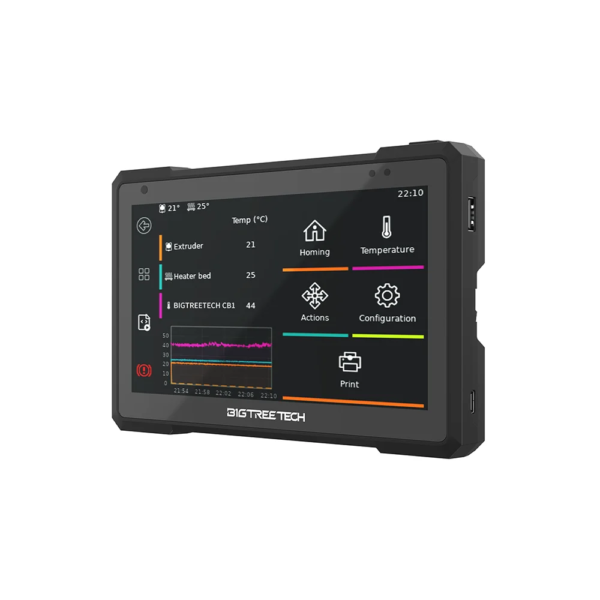

The BIGTREETECH Pad 7, a product of Shenzhen Big Tree Technology Co., Ltd., is a tablet equipped with pre-installed Klipper and KlipperScreen. The BTB headers have been engineered to provide users with the flexibility to select from various solutions, including CM4, CB1, and more.

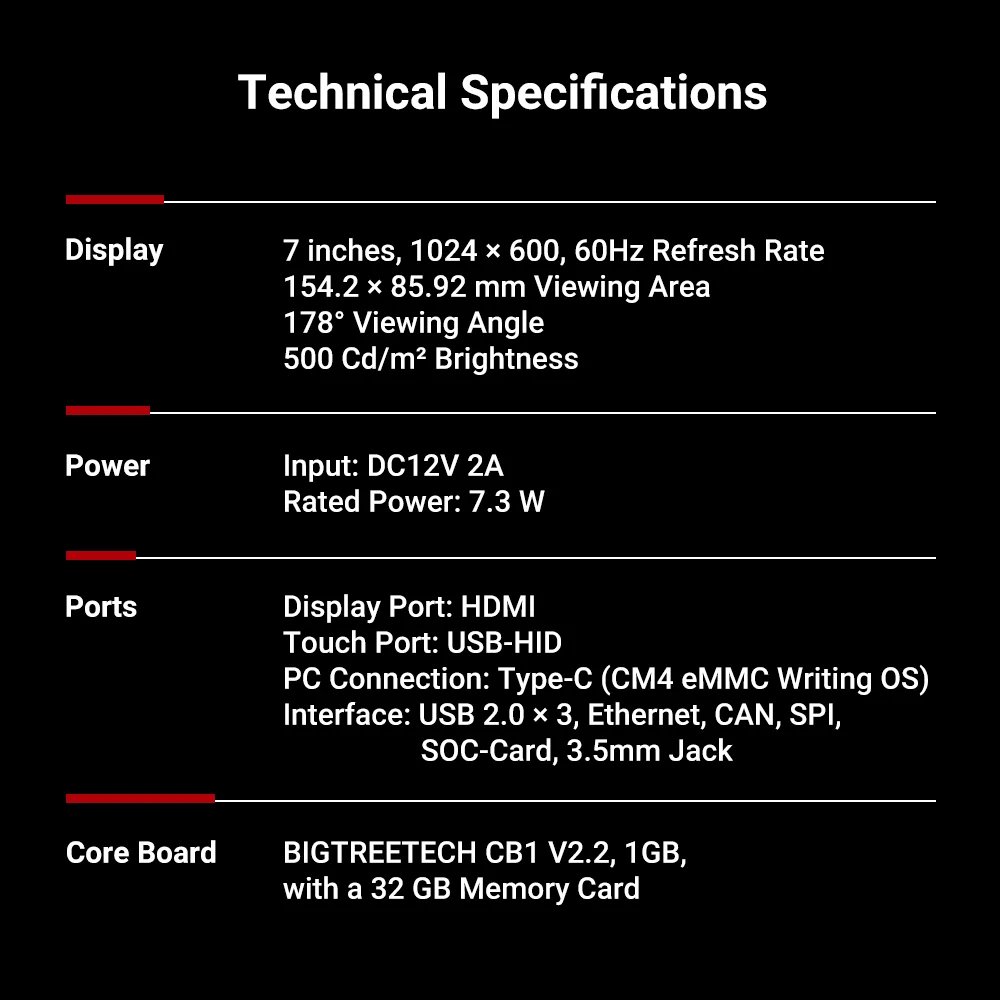

Specifications

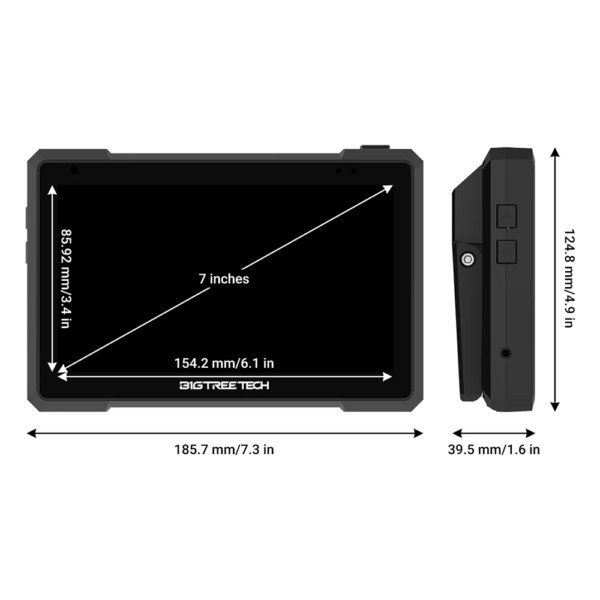

1. Dimensions: 185.7 x 124.78 x 39.5 mm
2. Display Viewing Area: 154.2 x 85.92 mm
3. Display: 7 inches, 1024 x 600, 60Hz refresh rate
4. Viewing Angle: 178°
5. Brightness: 500 Cd/m²
6. Input: DC 12V, 2A
7. Rated Power: 7.3W
8. Display Port: HDMI
9. Touch Port: USB-HID
10. PC Connection: Type-C (CM4 eMMC writing OS)

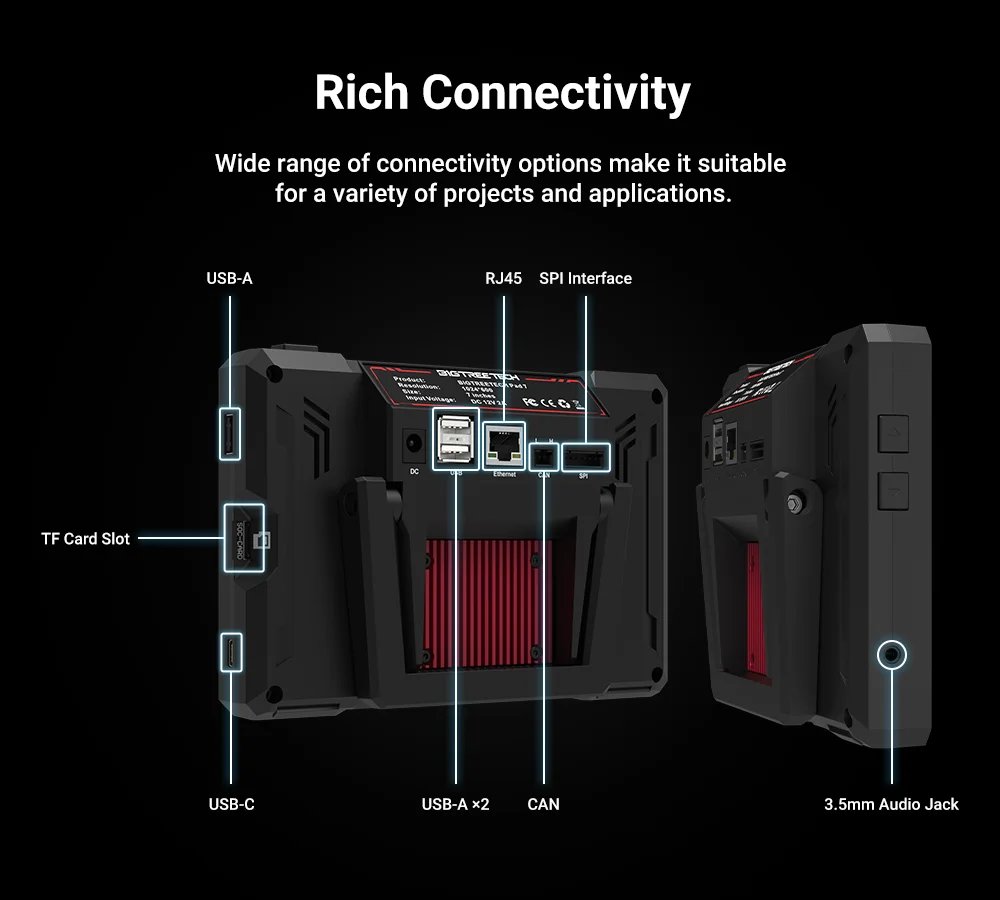

11. Interface: USB 2.0 x 3, Ethernet, CAN, SPI, SOC-Card, 3.5mm Jack

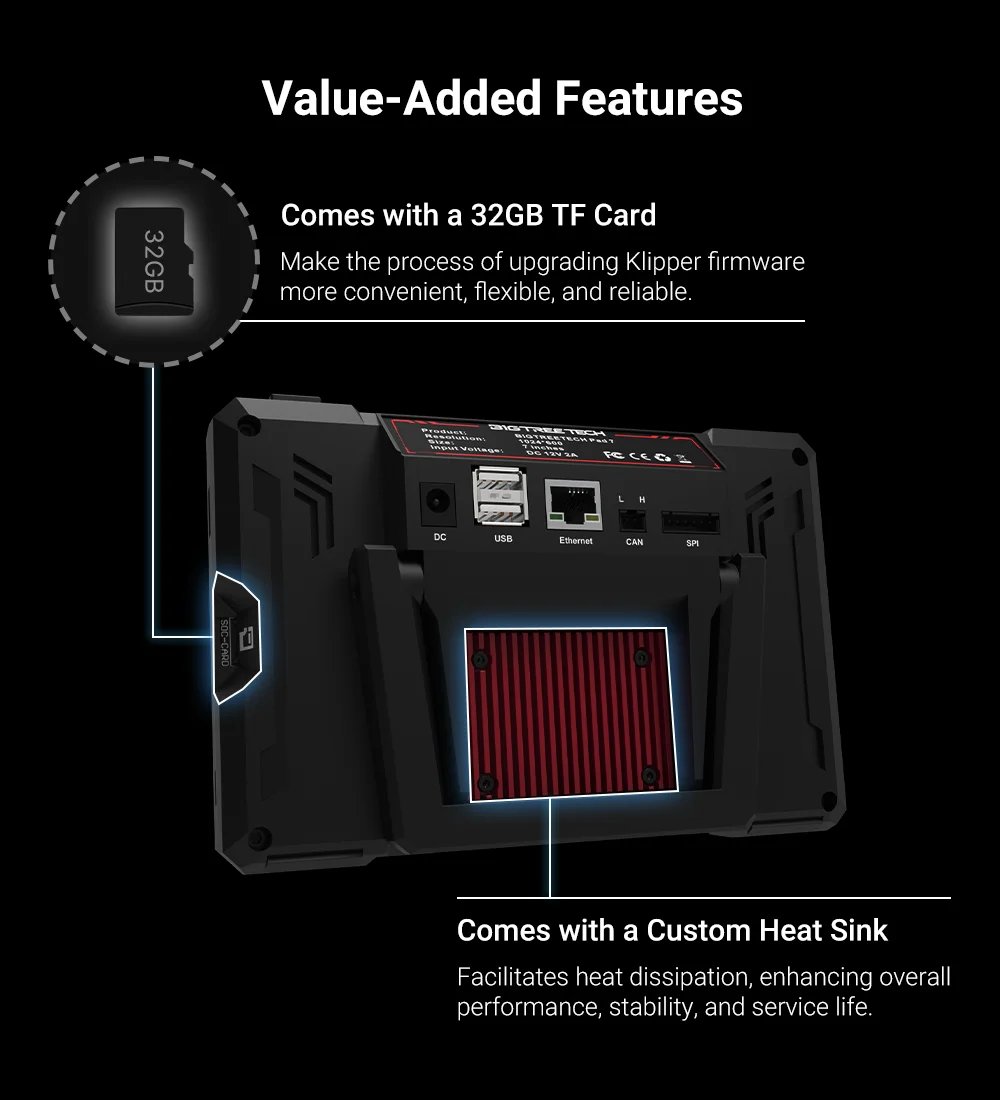

12. Core Board: BIGTREETECH CB1 v2.2, 1GB, with a 32 GB memory card
13. Compatible: CM4Voron 2.4，Ender 3，B1 SE PLUS
Feature Highlights

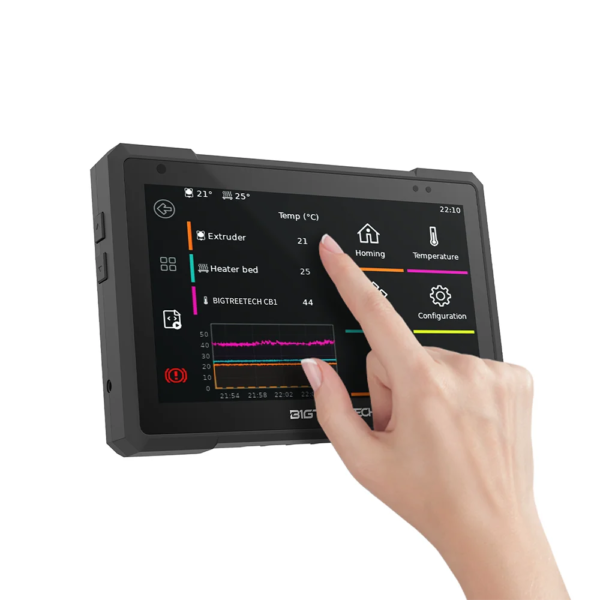

- The 7-inch IPS touch screen offers a wider field of view, high level of detail, and a comfortable user experience.
- Features a built-in speaker, which allows you to adjust the volume with the volume buttons.
- Having a 3.5mm headphone jack, which enables you to connect headphones or external speakers.

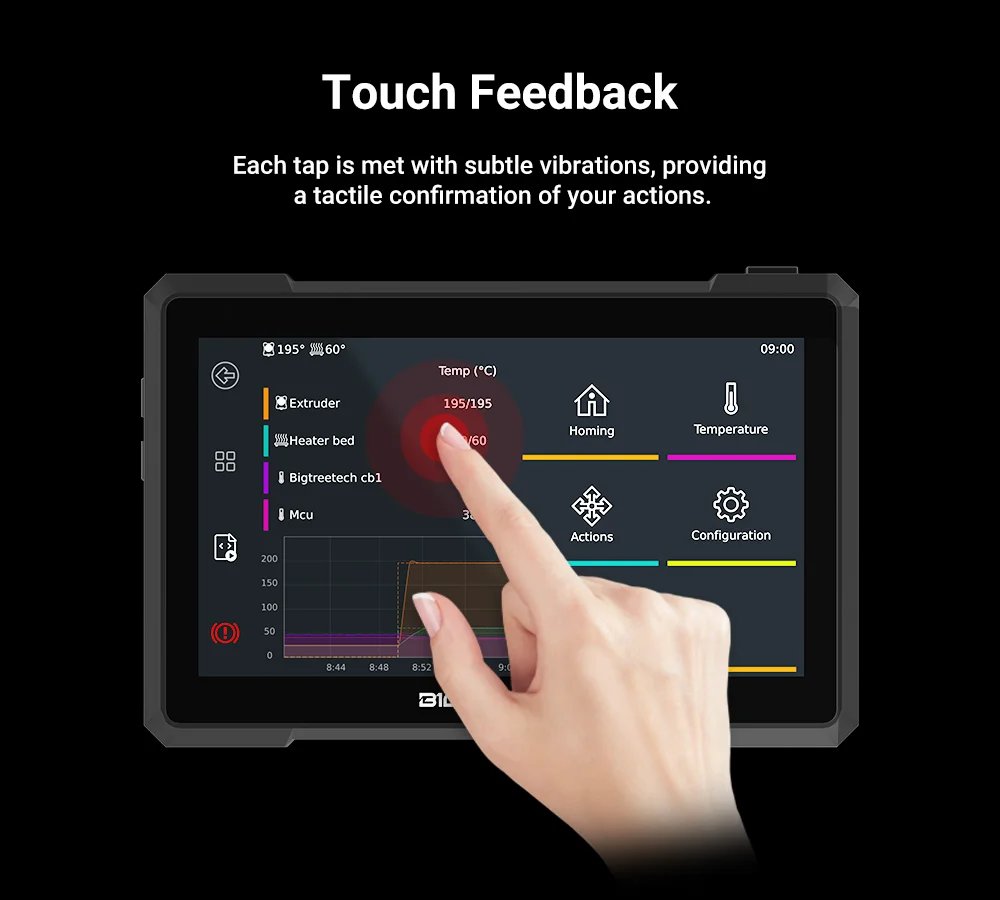

- The touch experience is enhanced with vibration feedback.
- The built-in light sensor adjusts the backlight brightness automatically based on the available light.
- Incorporates the GT911 high-performance touch chip, which supports 5-point touch.
- The bracket attaches securely to the back of the Pad 7 during storage and folding, thanks to the built-in magnets.
Advantage
- Klipper Pre-installed
- 7-inch IPS Touch Screen
- 1024×600 178° Viewing Angle
- CB1/CM4 Compatibility
- Rich Expansion Interface
- Open Source Support
